* 9 models are compatible with Panasonic HC-VX3, HC-V900, HC-VX1, HC-VX2, HC-VZX1, HC-VZX2, HC-WX1, HC-WX2,
HC-WXF1, HC-WZX1, HC-WZX2, HC-WZXF1 4K/2K Digital Video Cameras







HDP-7880ES

Click camera for actual comparison images.


F= Female thread size, M= Male thread size

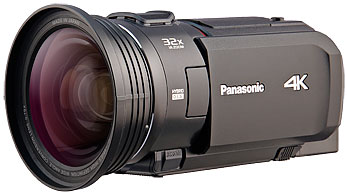

HDP-7880ES 4K compatible High Quality Wide-angle Conversion Lens 0.79x
 RAYNOX HDP-7880ES Wide Angle conversion lens broadens field of view larger in all directions, and your picture will include 27% more of the scene. The model HDP-7880ES high definition wide-angle lens is made of high index eco-optical glass elements with new concept of lens designing using three-group/three-element lens formulae. This new concept in designing the lens made it possible to achieve an amazing high definition wide-angle lens of the 355 lines/mm resolution power at center (MTF30%). It achieved level of almost non-distortion, -1.9% rate. It creates an unusually fine and non-distorted wide angle image.
This particular lens is designed for use with the 4K Wide Angle coverage Video Camcorders.

In using the appropriate adapter rings (included accessory), the HDP-7880ES lens will be compatible with 55mm, 58mm and 62mm filter sizes.
For the front filter thread of other than 55mm, 58mm, 62mm, please use a suitable Raynox adapter ring or tube sold separately. For suitable size of threads, please see the Cross Reference Table in our catalog or Raynox Website (http://www.raynox.com).

How to mount the Wideangle conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the 62mm adapter ring (included accessory) on the HDP-7880ES Wideangle conversion lens threads.
2) Mount the Wideangle conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 .
3) Set the camera's "Image Stabilizer" OFF for Non-vignetting shooting.

*35mm film equivalent in 16:9 ratio.
Material of lens barrel: ABS/PC hybrid
Magnification: Nominal 0,79x
Actual 0,79x/Diagonal, 0,79x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 10x zoom
Front filter size: None
Mounting threads: For 55mm Pitch0.75, 58mm Pitch0.75, 62mm Pitch0.75.
Size/Weight: 30.3mm x 86mm/153g(5.4oz)

Accessories included: Front and Rear Lens caps, 3-Adapter ring 55mm, 58mm, 62mm, Instruction manuals.
Specifications
  PAGE TOP
cross reference table
HDP-5072EX

Click camera for actual comparison images.



(Pic.1)
HDP-5072EX High Definition
Semi-Fisheye conversion Lens 0.5x
The model HDP-5072EX is a 0.5x semi-fish eye conversion lens particularly designed for use with the High Definition large aperture camera lens, and it has a resolution power of 630 lines/mm at center (MTF30%). With the HDP-5072EX lens mounted on 4K/2K High Definition camera's lens, it broadens 100% more the field of view than the original widest angle of view. In shooting a subject of short distance with HDP-5072EX lens on, it creates an interesting image of semi-fisheye effect, taking an advantage of the -31% distortion nature, but it takes a panoramic picture of 0.5x wide angle coverage without bothering the distortion image, when taken a distant subject.

How to mount the Wideangle conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the RA7262 - 62mm adapter ring ( sold separately) on the HDP-5072EX Wideangle conversion lens threads.
2) Mount the Wideangle conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 .
When mounting the HDP-5072EX Semi-fisheye lens onto the camera, we recommend set the camera vertically and do it very carefully, like shown in Pic.1.

HDP-5072EX Semi-fisheye lens weighs 640g and it's rather bulky, and please support the lens by hand carefully in shooting, and dismount the lens after completing the shooting.
Material of lens barrel: Sturdy and solid metal hybrid
Magnification: Nominal 0,5x
Actual 0.44x/Diagonal, 0,5x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 10x zoom
Front filter size: None
Mounting threads: 72mm
Size/Weight: 42 x 125mm/640g(22.6oz)

Accessories included: Lens caps, Lens case.
Specifications
PAGE TOP
cross reference table

DCR-2025PRO
Click camera for actual comparison images.



DCR-2025PRO_LS-082
 DCR-2025PRO 2.2x
High Quality Telephoto Conversion Lens

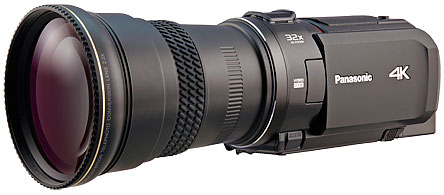

DCR-2025PRO lens extends the focal length of HC-VX3/HC-V900 zoom lens to 1320mm* Super telephoto !
It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula. 260 lines/mm resolution power at center (MTF30%)

How to mount the Telephoto conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the Telephoto conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 camera.

*35mm film equivalent in 16:9 ratio.
Material of lens barrel: ABS/PC hybrid
Magnification: Nominal 2.2x
Actual 2.2x/Diagonal, 2.2x/Horizontal
Lens construction: 2G/4E Optical coated glass elements
Minimum focusing distance: 6m
Effective zooming without vignetting: 10x - 24x zoom
Front filter size: 82mm
Mounting threads: 62mm
Size/Weight: 123 x 85mm/275g(9.7oz)

Accessories included: LS-082 Lens shade, Lens caps, Lens pouch, 4-adapter rings 43mm/52mm/62mm/58mm filter size, Instruction manuals.

Specifications

PAGE TOP
cross reference table


DCR-1545PRO


DCR-1545PRO

Click camera for actual comparison images.

 DCR-1545PRO 1.54x HD Telephoto Conversion Lens

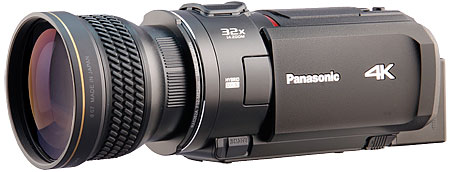

DCR-1545PRO lens extends the focal length of HC-VX3/HC-V900 zoom lens to 924mm telephoto lens!*
It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula. This new concept in designing the lens made it possible to achieve an amazing high definition telephoto lens of the 340 lines/mm resolution power at center (MTF30%), low dispersion and the increased light transmittance at fringe area.

How to mount the Telephoto conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the RA5262A - 62mm adapter ring** on the 52mm filter threads of DCR-1545PRO Telephoto lens.
2) Mount the Telephoto conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 camera.

*35mm film equivalent in 16:9 ratio.
**RA5262A-62mm adapter ring is sold separately.
Material of lens barrel: ABS/PC/Metal hybrid
Magnification: Nominal 1.54x
Actual 1.54x/Diagonal, 1.54x/Horizontal
Lens construction: 2G/4E Optical coated glass elements
Minimum focusing distance: 3.5m
Effective zooming without vignetting: 6x - 24x zoom
Front filter size: 67mm
Mounting threads: 52mm
Size/Weight: 67 x 71mm/240g(8.5oz)
Accessories included in DCR-1545PRO : 2-Adapter rings 49mm & 55mm filter size, Lens pouch, Lens caps, Instruction manuals.

Specifications
PAGE TOP
cross reference table
HDP-2800ES

Click camera for actual comparison images.



HDP-2800ES

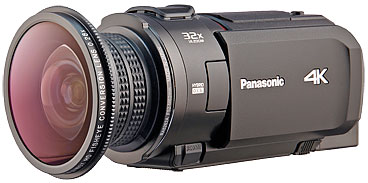

HDP-2800ES/HDP-2805ES High Definition
Diagonal Fisheye conversion Lens 0.28x
The HDP-2800ES/HDP-2805ES lens is a conversion lens for capturing an ultra wide angle image in using with the High Definition Digital camcorder. The lens is made of the high index optical glass in 3-group/3-element formula, and it's made in compact size and light weight. It achieved a high resolution power of 475 lines/mm at center (MTF30%). Mounting on the wide-angle lens of f=26mm or less (35mm film equivalent) focal length, it will be possible to shoot the scene of 180-degree diagonal**.

The HDP-2800ES includes 37mm and 43mm adapter rings, and the HDP-2805ES includes 49mm and 52mm adapter rings, each for use with cameras featuring matching filter thread sizes.

How to mount the Fisheye conversion lens onto the HC-VX3/HC-V900 camera.
1) Remove the adapter ring from the Fisheye lens.
2) Mount the RA5262A - 62mm adapter ring ( sold separately) on the HDP-2800ES/HDP-2805ES Fisheye conversion lens threads.
2) Mount the Fisheye conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 camera.
** A designing calculation figure.

Material of lens barrel: ABS/PC/Metal hybridy
Magnification: Nominal 0.28x
Actual 0.18x/Diagonal, 0.32x/Horizontal
Lens construction: 3G/3E Optical coated glass elements
Minimum focusing distance: 1cm
Effective zooming with conversion lens on: 1x - 4x zoom
Front filter size: None
Mounting threads: 37mm
Size/Weight: 41 x 77mm/205g(7.22oz)

Accessories included: Lens caps, Lens case, 2-adapter rings, Instruction manuals.

Specifications
  PAGE TOP
cross reference table


DCR-5320PRO

Click camera for actual comparison images.


How ?

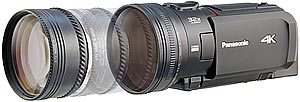

Add one more DCR-5320PRO onto the same set, giving you
8 different diopter choice of 2, 3, 4, 5, 6, 7, 8 and 10.		 DCR-5320PRO 3-in-1

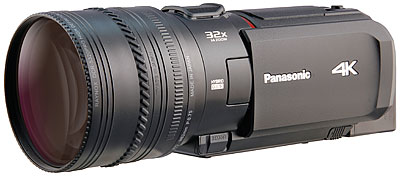

High Definition Macro Conversion Lens
The DCR-5320PRO High Definition Macro Conversion lens is particularly designed to use with the high-end digital, film and High Definition camcorders, resulting in an amazing resolution power of 200 lines/mm at center (MTF30%) with a low dispersion. With the Macro lens attached on the camera's lens, it makes possible to approach the object very close for macro shooting. The model consists of two independent lenses, one is with 2-diopter magnification and the other with 3-diopter. It also makes a 5-diopter lens by coupling the both lenses together. Taking advantage of using in three ways, you can shoot the object at the distances of either 50cm or 30cm or 17cm, depending upon the nature of a subject. All lens glass elements are fully coated for the optimum light transmittance and fine image quality.
The adapter rings which fit to the 52mm, 58mm, 62mm, 67mm, 77mm, 82mm threads (except 72mm) are sold separately.
This model is made for 72mm direct mounting size.

How to mount the Fisheye conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the RA7262 - 62mm adapter ring ( sold separately) on the DCR-5320PRO Macro conversion lens threads.
2) Mount the Macro conversion lens directly on the 62mm filter threads of HC-VX3/HC-V900 camera.

DCR-5320PRO Macro lens weighs 395g and it's rather bulky, and please support the lens by hand carefully in shooting, and dismount the lens after completing the shooting.

LENS 2-Diopter 3-Diopter 5-Diopter
Field size 16:9
(max. Telephoto)		 28.5mm 20mm 12.5mm
Construction 1G/2E 2G/3E 3G/5E
Weight 105g 290g 395g
Length 24mm 39mm 59mm
Filter size 72mm 72mm 72mm
Mount size 72mm 72mm 72mm
Focusing Distance 486mm* 311mm* 170mm*
Zooming capability 1,5 x-24 x (16:9) 2,0 x-24 x (16:9) 2,5 x-24 x (16:9)
* Camera focus set in infinity ∞.
* Distances shown here are between top of lens to the object.
Accessories included: Lens caps, Lens case, Instructions.
All surfaces of the lens are fully coated.

Specifications
  PAGE TOP







DCR-150

Click camera for actual comparison images.

cross reference table

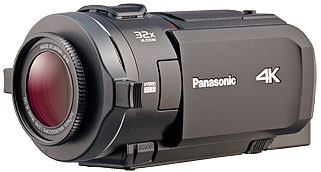

 DCR-150 Macro Conversion Lens
You can simply "Snap On" DCR-150 Macro lens directly onto the Panasonic camera. The shooting distance to the object is about 210mm and the picture size would be 12mm width in 16:9 Video mode.

How to mount the Macro conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the Macro conversion lens on the 43mm filter threads of UAC2000 Universal adapter*.
2) Snap on UAC2000 directly on the 62mm filter threads of HC-VX3/HC-V900 camera.
3) Set the zoom lens to Telephoto position.
*UAC2000 universal adapter is included in the DCR-150 box.
Material of lens barrel: ABS/PC hybrid
Magnification: 4.8-Diopter
Lens construction: 2G/3E Optical coated glass elements
Smallest field size: 12mm in maximum telephoto position
Effective zooming without vignetting: 4x -24x zoom
Front filter size: 49mm
Mounting threads: 43mm
Size/Weight: Lens only - 18 x 53mm/50g(1.8oz)

Accessories included: Lens caps, Lens case, Universal adapter UAC2000, Instruction manuals.

Specifications
PAGE TOP




DCR-250

Click camera for actual comparison images.

cross reference table

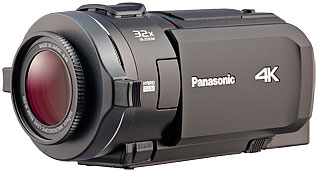

 DCR-250 High Power Macro Conversion Lens
You can simply "Snap On" DCR-250 Macro lens onto the RA4337A adapter ring. The shooting distance to the object is about 109mm and the picture size would be 7,2mm width in 16:9 Video mode.

How to mount the Macro conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the Macro conversion lens on the 43mm filter threads of UAC2000 Universal adapter*.
2) Snap on UAC2000 directly on the 62mm filter threads of HC-VX3/HC-V900 camera.
3) Set the zoom lens to Telephoto position.
*UAC2000 universal adapter is included in the DCR-250 box.
Material of lens barrel: ABS/PC hybrid
Magnification: 8-Diopter
Lens Construction: 2G/3E Optical coated glass elements
Smallest field size: 7,2mm in maximum telephoto position
Effective zooming without vignetting: 4x -24x zoom
Front filter size: 49mm
Mounting threads: 43mm
Size/Weight: Lens only - 18 x 53mm/60g(2.1oz)

Accessories included: Lens caps, Lens case, Universal adapter UAC2000, Instruction manuals.

Specifications
PAGE TOP




MSN-505

Click camera for actual comparison images.

cross reference table

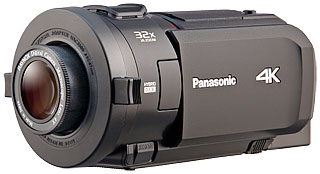

 MSN-202 Super Macro Conversion Lens
The combination of MSN-202 and HC-VX3/HC-V900 makes it easy to capture a tiny object like 3mm width for a frame-filling enlarged close-up image from the distance of 32mm to the object at the maximum telephoto position.

How to mount the Macro conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the Macro conversion lens on the 37mm filter threads of UAC3500 Universal adapter*.
2) Snap on UAC3500 directly on the 62mm filter threads of HC-VX3/HC-V900 camera.
3) Set the zoom lens to Telephoto position.
*UAC3500 universal adapter is included in the MSN-202 box.
Magnification: 25-Diopter
Material of lens barrel: ABS/PC hybrid
Lens construction: 3G/4E Optical coated glass elements
Smallest field size: 2.3mm in maximum telephoto position
Effective zooming without vignetting: 8x -24x zoom
Front filter size: None
Mounting threads: 37mm
Size/Weight: 22 x 42mm/60g(2.1oz)

Accessories included: Lens caps, Lens case, Universal adapter UAC3500, Instruction manuals.
PAGE TOP




MSN-505

Click camera for actual comparison images.

cross reference table

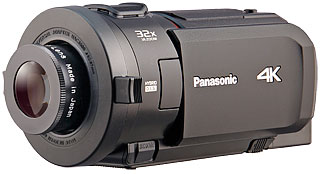

 MSN-505 Super Macro Conversion Lens
With MSN-505 Super Macro lens attached, the camera captures an intricate tiny object like 1,8mm width for a frame-filling enlarged close-up image from the distance of 18,5mm to the object at the maximum telephoto position.

How to mount the Macro conversion lens onto the HC-VX3/HC-V900 camera.
1) Mount the Macro conversion lens on the 37mm filter threads of UAC3500 Universal adapter*.
2) Snap on UAC3500 directly on the 62mm filter threads of HC-VX3/HC-V900 camera.
3) Set the zoom lens to Telephoto position.
*UAC3500 universal adapter is included in the MSN-505 box.
Magnification: 32-Diopter
Material of lens barrel: Metal
Lens construction: 3G/4E Optical coated glass elements
Smallest field size: 1,8mm in maximum telephoto position
Effective zooming without vignetting: 23x - 24x zoom
Front filter size: None
Mounting threads: 37mm
Size/Weight: 26 x 42mm/86g(3oz)

Accessories included: Lens caps, Lens case, Universal adapter UAC3500, Instruction manuals.
PAGE TOP


A full-screen mode button is available at lower right of the screen.
画面右下にフルスクリーンモードモードボタンがあります。
PAGE TOP


A full-screen mode button is available at lower right of the screen.
画面右下にフルスクリーンモードモードボタンがあります。
PAGE TOP


A full-screen mode button is available at lower right of the screen.
画面右下にフルスクリーンモードモードボタンがあります。
PAGE TOP
● Raynox model HD-7062PRO is not compatible with HC-VX3, HC-V900, HC-VX1, HC-VX2, HC-VZX1, HC-VZX2, HC-WX1, HC-WX2, HC-WXF1, HC-WZX1, HC-WZX2, HC-WZXF1.
● The cosmetic design may change without a prior notice.
● Do not look at the sun or a strong light beam direct through the Macro Conversion lens. It may cause a severe damage on human eyes.
Important; Do not shoot your camera with the Macro Conversion lens on, in direct sun light on the lens surface.
● There will be no reduction of light value when these conversion lenses are attached on the camera's lens(Except DCR-150, DCR-250, MSN-202, MSN-505 macro lenses.)
● Depending upon the condition of shooting, especially when the lighting is not bright enough, there may be possibility of creating a flare effect which reduces the image quality. When the conversion lens is attached, please make sure that the object is under the bright condition.
● Raynox telephoto conversion lenses are designed to use at maximum Telephoto position of  camera's zoom lens, unless specified otherwise.
● Raynox wideangle conversion lenses are designed to use at maximum wideangle position of  camera's zoom lens unless specified otherwise.
● Exposing the conversion lens to a warm atmosphere in an instant way from the cold area may create some dew on and inside the lens. When it happened inside the lens, keep the lens in a dry area till the dew disappear before using. Repeating such may leave dirt spot - (mildew) and affect the image.
● Remote control function may not work properly with conversion lens attached.
● Internal video light/flash may not function with conversion lens attached.
● When using the zoom-compatible wide angel lens at the telephoto end of camera lens, it must be done under a bright lighting environment, not indoor or poor lighting condition. Otherwise, it will reduce the image quality.
● An extra caution must be paid to protect the sticking out long lens by hands in carrying around and using the camera with a telephoto lens on.
● To protect the camera from an accidental damage please remove the Conversion Lens before moving the camera and Do not carry around the camera with the Conversion lens attached.
● Camera original Lens hood may not be able to use when the conversion lens is mounted.
● The lens is neither made for dust-free nor moisture/water-proof.
Safety Instructions for Raynox products.
● All of Raynox conversion lenses are proudly made in Japan. At our wholly owned manufacturing subsidiary, every stage of production is rigorously checked and tested so that the lens elements compensate effectively for astigmatism, distortion and spherical aberration.... for an excellent image quality.
FOR DIGITAL CAMERA FOR VIDEO CAMCORDER MACRO LENS FOR SLR CAMERA PROJECTION LENS ABOUT US
WORLDWIDE CONTACT ENGLISH INDEX HOME
RAYNOX is the registered trademark of Yoshida Industry Co., Ltd. Tokyo. Other brand names and the models are the trademarks of their manufactures or their subsidiaries and may be registered in certain jurisdictions. ©Y.I.C.
