Click camera for actual comparison images.
|
DCR-2025PRO 2.2x High Definition
Super Telephoto Conversion Lens
DCR-2025PRO lens extends the focal length of OLYMPUS SP-500UltraZoom camera zoom lens to over 830mm Super telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
260 lines/mm resolution power at center (MTF30%)
Model RT5245C7 Lens Holder Tube and RA6252 adapter ring are required for
use with the DCR-2025PRO.
Magnification: Nominal 2.2x Actual 2.2x / Diagonal, 2.2x / Horizontal
Minimum focusing distance: 6m
Zoom capability: f=63mm-f=50mm
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 62mm
Front filter size: 82mm
Size/Weight: 123 x 85mm/275g.(9.7oz)
RT5245C7 lens holder is Not Included.
DCR-2025PRO comes with 4-adapter rings for 43mm(RA6243), 52mm(RA6252), 55mm(RA6255), 58mm(RA6258) filter sizes and a LS-082 lens shade.
Specifications |
 |
 |
|
|
Click camera for actual comparison images.
|
 |
Click camera for actual comparison images.
|
DCR-CF185PRO High Definition 185º Circular Fish-Eye Conversion Lens
Upon mounting on the zoom lens, the DCR-CF185PRO opens the field of view
to the ultra wide angle, the diagonal fisheye angle images. It's a completely
new high definition lens made of the high index optical coated lens with
a 4-group/6-element formula to obtain the maximum resolution power of 500 lines/mm at center (MTF30%), while it has low dispersion.
Model RT5245C7 Lens Holder Tube and RA6252 adapter ring are required for
use with the DCR-CF185PRO.
Magnification: Nominal 185-degree, Actual 185-degree/Diagonal, 185-degree/Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=40mm-f=6.3mm
Lens construction: 4G/6E, made of optical glass lenses, all surfaces fully
coated.
Mounting threads: 62mm
Size / Weight: 96 x 98 / 560g(20oz)
RA6258 and RA6252 adapter rings are Included.
RT5245C7 lens holder is Not Included.
Specifications
Does not perform a circular fish-eye effect. |

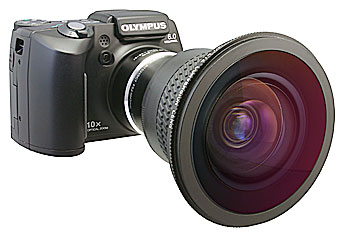

DCR-FE180PRO Pro Fish-Eye(Full Frame) Lens
DCR-FE180PRO lens captures an amazing diagonal fisheye view. It's a completely
new high definition lens made of the high index optical lens with a 4-group/5-element
formula.
Model RT5245C7 Lens Holder Tube and RA6252 adapter ring are required for
use with the DCR-FE180PRO.
Magnification: Nominal 0.24x Actual 180-degree/Diagonal, 0.24x/Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=31.5mm-f=6.3mm
Lens construction: 4G/5E Optical coated glass elements
Mounting threads: 62mm
Front filter size: None
Size/Weight: 100 x 69mm/685g(24oz)
RA6258 and RA6252 adapter rings are Included.
RT5245C7 lens holder is Not Included.
Unable to capture 180º angle of view on diagonal line.
|
 |
 (700KB)
 (3800KB) |
|
|
|
Click camera for actual comparison images.
|
|
Click camera for actual comparison images. |
DCR-6600PROHigh Definition Wideangle lens 0.66x
The lens creates super wide angle view of f=25mm (35mm film equiv.), compatible up to 5x zooming range. DCR-6600PRO lens controls the image
distortion percentage at the least, less than -1.3%.
Magnification: Nominal 0.66x Actual 0.66x/Diagonal, 0.66x/Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=31.5mm-f=6.3mm
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 72mm
Size/Weight:: 77 x 40mm/178g
RT5245C7 adapter ring is Not Included.
Specifications
|

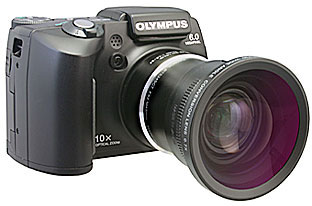

DCR-730 Wideangle lens 0.7x
DCR-730 lens broadens angle of view 37% more than original camera lens.
The lens is made of high index optical glass elements which obtain the maximum resolution power of 375 lines/mm at center (MTF30%),
There will be no reduction of light value when this conversion lens is attached on the camera's lens.
Magnification: Nominal 0.7x Actual 0.71x/Diagonal, 0.75x/Horizontal
Minimum focusing distance: 30mm/(1.2M at f=63mm)
Zoom capability: f=63mm-f=6.3mm
Lens construction: 2G/2E Optical coated glass
elements
Mounting threads: 52mm
Size/Weight:: 66 x 29mm/130g
RT5245C7 lens holder is Not Included.
Specifications
 |
|
|
|
Click camera for actual comparison images.
|
|
Click camera for actual comparison images.
|
MDR-079PRO 0.79x
High Definition Wideangle Conversion Lens
MDR-079PRO 0.79x high definition lens is especially designed for getting
low distortion(-1.9%) and high resolution(330 lines/mm resolution power at center (MTF30%)) performance. The lens converts the camera into the superb 30mm(35mm film
equivalent) wide angle coverage one.
Model RT5245C7 Lens Holder Tube and RA4952 adapter ring are required for
use with the MDR-079PRO.
Magnification: Nominal 0.79x Actual 0.79x / Diagonal, 0.79x / Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=12.6mm-f=6.3mm
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 49mm
Front filter size: 82mm
Size/Weight: 86 x 29mm/195g.(6.8oz)
RA4952 adapter ring is Included.
RT5245C7 lens holder is Not Included.
Production Discontinued.
Available quantity may be limited. (Sep. 2007) |

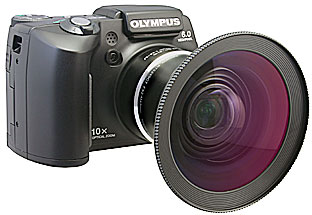

DCR-5000 Super Wideangle lens 0.5x
The lens creates 0.5x Super wide angle view.
(f=19mm-35mm film equiv.)
Magnification: Nominal 0.5x Actual 0.44x/Diagonal, 0.5x/Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=6.3mm only
Lens construction: 1G/1E Optical coated glass element
Mounting threads: 52mm
Front filter size: None
Size/Weight:: 90x26mm/140g
Specifications
RT5245C7 lens holder is Not Included.
DCR-5000 is designed to focus properly when the camera is set in maximum
wide & macro mode,s-macro, manual mode. |
|
|
|
Click camera for actual comparison images. |
|
Click camera for actual comparison images. |
HD-7000PRO Wideangle lens 0.7x
The model HD-7000PRO high definition Wideangle conversion lens is made
of the high index optical glass with new concept of lens designing
using three-group/three-element lens formula. This new concept in designing
the lens made it possible to achieve an amazing high definition wideangle
lens of 540 lines/mm resolution power at center (MTF30%).
There will be no reduction of light value when this conversion lens is attached on the camera's lens.
Model RT5245C7 Lens Holder Tube and RA5852 adapter ring are required for
use with the HD-7000PRO.
Magnification: Nominal 0.7x Actual 0.7x/Diagonal, 0.7x/Horizontal
Minimum focusing distance: 30mm
Zoom capability: f=18.9mm-f=6.3mm
Lens construction: 3G/3E Optical coated glass elements
Mounting threads: 58mm
Front filter size: 82mm
Size/Weight:: 86 x 37mm/314g
RT5245C7 lens holder is Not Included.
Specifications
|

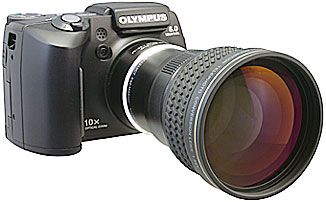

DCR-1540PRO 1.54x
High Definition Telephoto Conversion Lens
DCR-1540PRO lens extends the focal length of OLYMPUS SP-500UltraZoom camera lens to 585mm telephoto ! (35mm film equivalent) It's a completely new high definition lens made of the high index optical lens with a 2-group/4-element formula.
340 lines/mm resolution power at center (MTF30%)
Magnification: Nominal 1.54x Actual 1.54x / Diagonal, 1.54x / Horizontal
Minimum focusing distance: 3.5m
Zoom capability: f=63mm-f=39mm
Lens construction: 2G/4E Optical coated glass elements
Mounting threads: 52mm
Front filter size: 67mm
Size/Weight: 71 x 67mm/240g
RT5245C7 lens holder is Not Included.
Specifications |
|
|
|
|
Click camera for actual comparison images.
|
|
Click camera for actual comparison images.
|
DCR-150 Macro/Close-Up lens
You can simply "Snap On" DCR-150 Macro lens onto RT5245C7 lens holder.(Shooting distance to the object 185mm)
Lens construction: 2G/3E Optical coated glass elements
Zoom capability: f=63mm-f=18mm
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-150 53x18mm/50g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
RT5245C7 lens holder is Not Included.
Specifications |
DCR-250 Super Macro/Close-Up lens
You can simply "Snap On" DCR-250 Super Macro lens onto RT5245C7
lens holder.(Shooting distance from the object 115mm)
Lens construction: 2G/3E Optical coated glass elements
Zoom capability: f=63mm-f=21mm
Front filter size: 49mm
Rear threads size: 43mm
Size/Weight: DCR-250 53x18mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
RT5245C7 lens holder is Not Included.
Specifications
|
|
|
|
Click camera for actual comparison images.
|
|
Click camera for actual comparison images.
|
MSN-202 Super Macro/Close-Up lens
You can simply "Snap On" MSN-202 Super Macro lens onto the RT5245C7
by using a universal mount UAC3500 and it will be able to take macro images
with minimum distortion at the maximum telephoto position of SP-500UltraZoom camera.
(Shooting distance from the object ;30mm in maximum telephoto mode.)
Magnification: 9.3x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-202 42x22mm/60g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
UAC3500 Universal adapter is Included. |
MSN-505 Super Macro/Close-Up lens
With MSN-505 Super Macro lens attached, the camera captures an intricate
tiny object like 3.5mm x 2.6mm for a frame-filling enlarged close-up image
from the distance of 18mm to the object at the maximum telephoto position.You can simply "Snap On" MSN-505 Super Macro lens onto the filter
threads of RT5245C7 Tube adapter by using a universal mount UAC3500 and it will be able to capture macro images with minimum distortion at the maximum telephoto position of SP-500UltraZoom cameras.
Magnification: 12x, compared to camera's max.wideangle macro image size.
Lens construction: 3G/4E Optical coated glass elements.
Front filter size: None
Rear threads size: 37mm
Size/Weight: MSN-505 42 x 24mm/86g.
CAMERA STAND KS-2000 FOR MACRO IMAGING
UAC3500 Universal adapter is Included. |
|
|
|
Click camera and see the RAYNOX PL filter effect.
|
PFR-C70 Protection Filter Kit
The filter is designed to protect your valuable camera lens from air pollution
or scratches, and it comes with a cap. The multi-coated surfaces will help
maintain the original optical performance of your camera.
Filter: Front: 52mm size, Rear: 52mm size
(Filter Cap included.)
RT5245C7 lens holder is Included.
|
|
PLP-C70 Polarizer and MC Protection Filter Kit
PLP-C70 is the kit of Multi-Layer Coated Protection filter, a Linear Polarizer filter and a Tube Adapter to mount on SP-500UltraZoom Digital Camera. The package comes with a pouch, a filter cap and an instruction manuals.
Raynox Linear Polarizer Filter suppresses unwanted light reflection such
as on the glass or the water. It maintains auto focus function when the
filter is attached.
Filter: Front: 52mm size, Rear: 52mm size
(Filter Cap included.)
RT5245C7 lens holder is Included.
|
| |
|
|
|
|
|
|
 |
CAMERA STAND KS-2000 FOR MACRO IMAGING
A camera stand with built-in light source and height adjustable camera
mount.
(480KB)
(3400KB)
(600KB)
(3600KB)
|
RT5245C7 Tube Adapter
This is a lens holder for mounting DCR series lenses to
SP-500UltraZoom camera.
F52-M45.6mm size Tube Adapter
Set or take off the lens holder when the camera power is off. |
|
|
|
